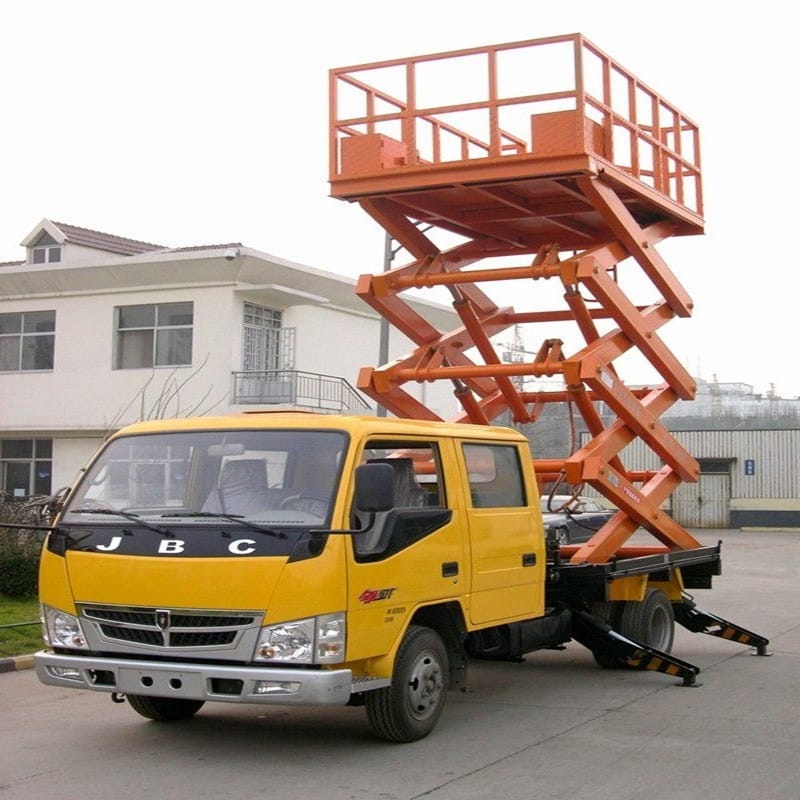

truck mounted scissor lift：
Truck mounted hydraulic lifting platform combines four-wheel movable type and two-wheel traction type, adopts chassis of automobile, tricycle or battery car as base frame of the platform, engine of the vehicle or direct current as power, which could run as well as drive the platform go up and down, widely used for field work high above the ground among the industries such as urban construction, petroleum, traffic, municipal construction and factory.
Specification for hydraulic scissor lift :
1.This hydraulic lift platform truck is the professional high-altitude operation equipment.
2.Its scissor mechanical structure makes the lifting platform lift more stably.Wide working platform and large loading capacity can make the work scope bigger. It’s suitable for several people working together.
3.Lifting height: 4m, 6m, 8m, 10m, the max height of the scissor lift is 16m.
4.Loading capacity: 300kg,500kg,800kg,1000kg and so on.
5.Certifications: CE ISO/9001:2008 & UCS (QUALITY MANAGEMENT SYSTEM CERTIFICATE)
Truck mounted scissor lift parameter：
Load Capacity:
300Kg-1000kg
Lifting Height:
6-12m
Lift Drive / Actuation:
Electric Motor
Warranty:
One year
Truck mounted scissor lift detailed parameters:
|
Model |
YLH0.3-6C |
YLH0.5-6C |
YLH0.5-7.2C |
YLH0.3-9C |
YLH0.5-9C |
YLH1-9C |
|
|
Capacity |
kg |
300 |
500 |
500 |
300 |
500 |
1000 |
|
Max. height |
mm |
6000 |
6000 |
7200 |
9000 |
9000 |
9000 |
|
Min. height |
mm |
950 |
950 |
1350 |
1500 |
1600 |
1600 |
|
Platform size |
mm |
1780*840 |
1780*840 |
2000*1000 |
2000*1000 |
2000*1000 |
2100*1200 |
|
Overall size |
kg |
3000*1100*1100 |
3000*1100*1100 |
3500*1350*1550 |
3500*1350*1700 |
3500*1350*1850 |
3500*1350*1850 |
|
Lifting time |
s |
35 |
38 |
60 |
70 |
73 |
78 |
|
Voltage |
V |
24 |
24 |
40 |
40 |
40 |
40 |
|
Motor power |
kw |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
3 |
|
Net weight |
kg |
1450 |
1450 |
2700 |
2800 |
2900 |
3100 |
1) We can design the hydraulic scissor lift table as per your requirement.
2) The exactly hydraulic scissor lift will be recommended to you once we get your requirement
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 12 months warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
