1 ton(1000kg) Hydraulic scissor lift
The 1 ton hydraulic scissor lift is divided into three types: the scissor lift table , Include manual and electric,The stationary hydraulic scissor lift and the mobile scissor lift. The lifting platform Lifting is stable, installation and maintenance is simple and convenient, is an economic and practical ideal cargo transport equipment for lifting goods. According to the installation environment and use requirements of the lifting platform, different optional configurations can be selected to achieve better use effect.
1ton Electric Manual hydraulic scissor lift Table
Rated Loading Capacity：100kg-2000kg
Max. Lifting Height：3m
Power Source:
Hydraulic AC pump/DF pump
electric-hydraulic
Manual lifting
Min. Lifting Height:
415mm
The scissor lift table 1ton used l has the advantages of small size, light weight, convenient movement, stable lifting, small swing, large carrying capacity, large platform area, excellent stability, flexible operation and convenient implementation. Its light appearance gives it the highest lift capacity in a very small space.
Table of parameters of 1-ton scissor lift table:
|
Item/Model |
SLC1000 |
|
Rated load |
1000kg |
|
The maximum height |
1000mm |
|
Minimum height |
430mm |
|
Lifting height |
670mm |
|
Table size |
1000x512x55mm |
|
Handle the height from the ground |
1010mm |
|
On foot to lift the heavy weight of the times |
≤40 |
|
Wheel diameter |
150mm |
|
Single pack size |
1130x610x460mm |
|
Gross weight |
132kg |

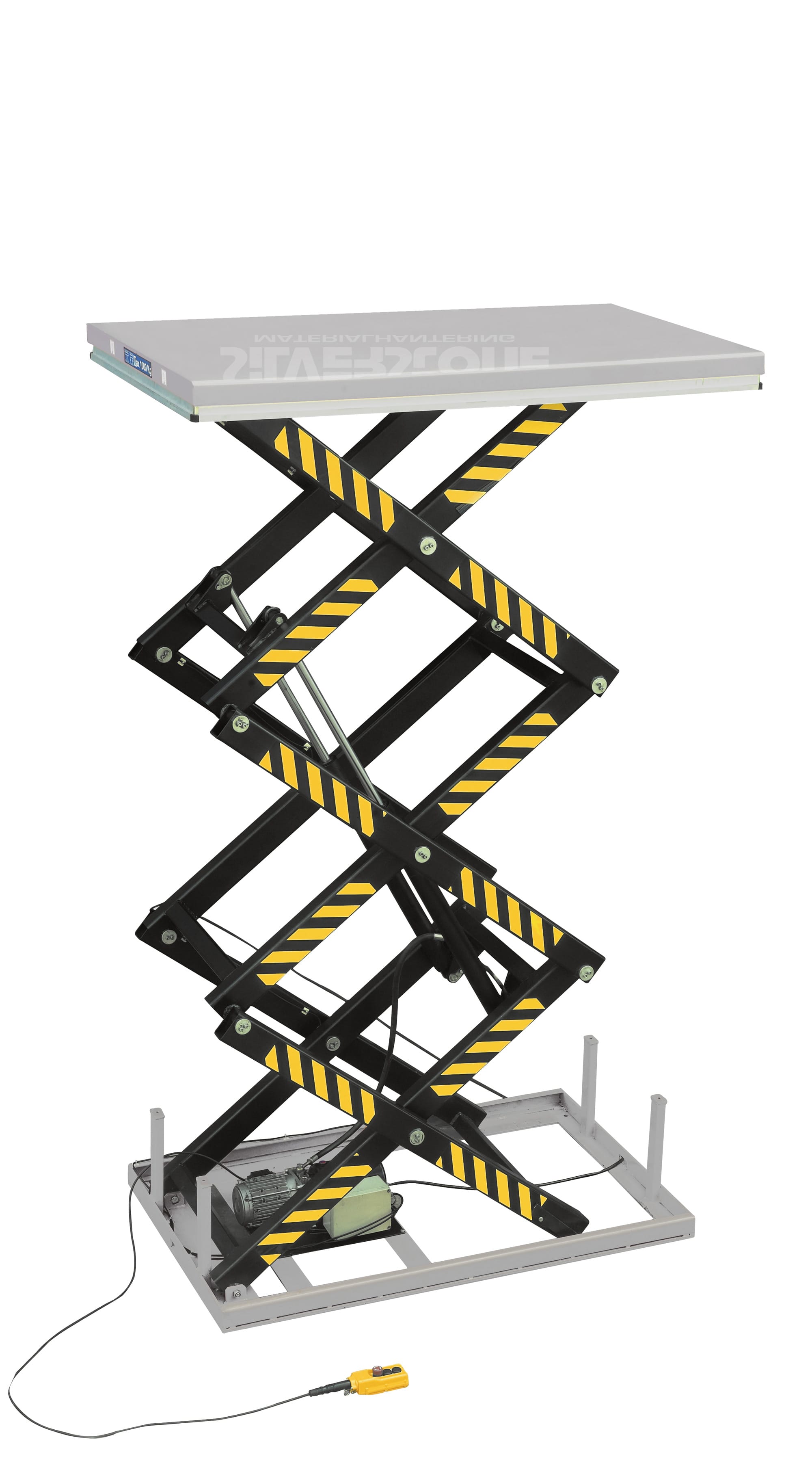

Stationary Hydraulic Scissor lift 1 ton
Lift drive :Hydraulic
Lifting speed: 3-6m/min
Material: High-duty Steel Structure
Min. Lifting Height: 0.9m
Platform: Anti-skid Platform
1ton Stationary hydraulic scissor lift is a kind of cargo lifting equipment with good lifting stability and wide application range. Scissor lift is mainly used for the transportation of goods between the production line height difference; the material is on the line and the lower line; the height of the workshop is adjusted during the assembly of the workshop; Machine feeding; lifting of components during assembly of large equipment; loading and unloading of large-scale machine tools; loading and unloading places with forklifts and other transportation vehicles for fast loading and unloading of goods. According to the requirements of use, the accessory device can be configured to perform any combination, such as the safety protection device of the fixed lifting platform; the electrical control mode; the working platform form; the power form. The correct choice of various configurations can maximize the function of the lifting platform and achieve the best results.
1ton Stationary scissor lift parameter table:
|
Model |
Lift height/m |
Lift capacity/kg |
Platform size/mm |
|
SJG2.5-3 |
3 |
2500 |
5200*2600 |
|
SJG2-6.5 |
6.5 |
2000 |
5200*2800 |
|
SJG2.5-3.5 |
3.5 |
2500 |
5200*2600 |
|
SJG2.5-5 |
5 |
2500 |
5600*3000 |
|
SJG3-2.5 |
2.5 |
3000 |
5000*2300 |
|
SJG3-3.5 |
3.5 |
3000 |
5600*2700 |
|
SJG5-10 |
10 |
5000 |
4500*2500 |
|
SJG8-2.5 |
8 |
2500 |
6500*4500 |
|
SJG12-3 |
12 |
3000 |
5500*2800 |
|
SJG15-4.5 |
15 |
4500 |
8000*2200 |
|
SJG20-5 |
20 |
5000 |
6000*3000 |
|
The hydraulic scissor car lift can be customized as your detailed size |
|||
1 ton Movable hydraulic scissor lift 1000kg
Table size: 2100*1230mm
Weight: 880-2560kg
Lifting speed: 3-6m/min
Power supply: AC DC Diesel
Min. Lifting Height: 1530mm
Platform: Anti-skid
Scissor lift platform is a scissor structure man lift for aerial work which can be towed by man power or by trailers.The mechanical structure make the platform stability,wide operating and high loading capacity. Normal scissor lifting power is AC power,DC and diesel power are also available for option. With various control methods (transfer, linkage, explosion-proof), it has the characteristics of stable and accurate lifting, frequent starting, and heavy load, which effectively solves the difficulties of various lifting operations in industrial enterprises and makes production operations easy. The structure of the scissor lift platform makes the platform lift higher stability, the large working platform and the large carrying capacity, which makes the working range of the aerial work larger and suitable for multiple people to work at the same time. It makes aerial work more efficient and safer!
Movable scissor lift Product Size:
|
Item/Model |
SLC1000 |
|
Rated load |
1000kg |
|
The maximum height |
1000mm |
|
Minimum height |
430mm |
|
Lifting height |
670mm |
|
Table size |
1000x512x55mm |
|
Handle the height from the ground |
1010mm |
|
On foot to lift the heavy weight of the times |
≤40 |
|
Wheel diameter |
150mm |
|
Single pack size |
1130x610x460mm |
|
Gross weight |
132kg |
